G50 Chongqing Chongqing Fuling expressway, Huang huangcaoshan concentric village, Fort Temple tunnel China creation "Internet plus color temperature and brightness. Anti fog and haze of a new generation of LED tunnel lights and remote intelligent control system for the implementation of energy-saving green lighting completed Newsletter

In May this year, Chongqing Chongqing Fuling Expressway Co. Ltd. and Chongqing Green Technology Development Co. Ltd. energy saving project of G50 Shanghai and Chongqing high-speed yellow huangcaoshan, concentric village, Miao Bao tunnel LED green lighting, in the energy management contract signed a contract. The project uses "Chinese creation" Internet plus color temperature and brightness. Anti fog and haze of a new generation of intelligent LED tunnel lights and remote intelligent control system, the implementation of energy-saving green lighting of the original 3629 tunnel lamp sodium lamp. The six tunnel units of three tunnels, with a total length of 5.5 kilometers and 11 square meters of cloth cloth, are the longest and largest number of green lighting projects used in tunnel lighting both at home and abroad. The project has been fully completed and put into use.

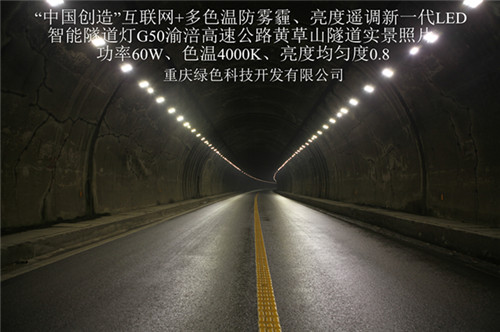

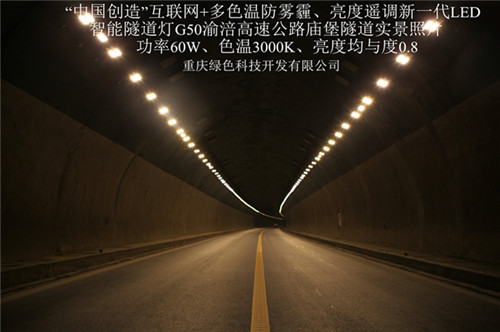

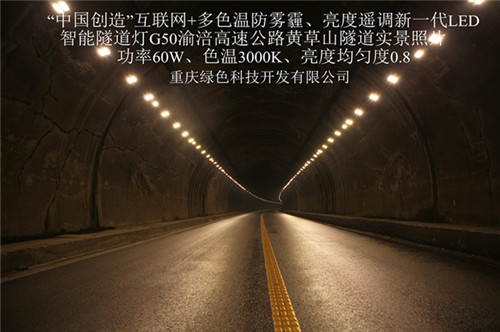

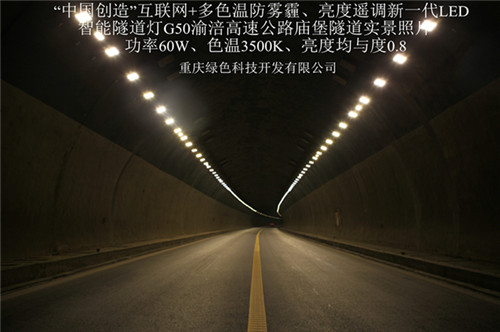

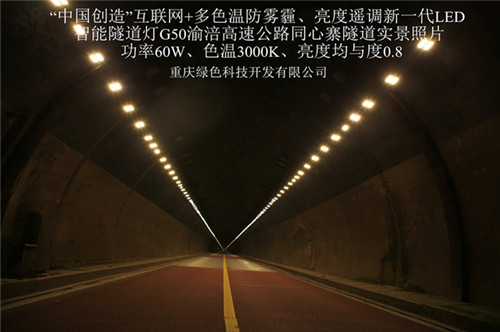

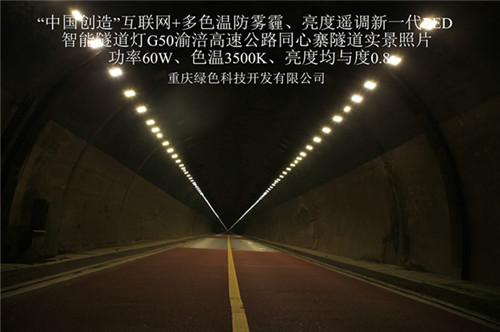

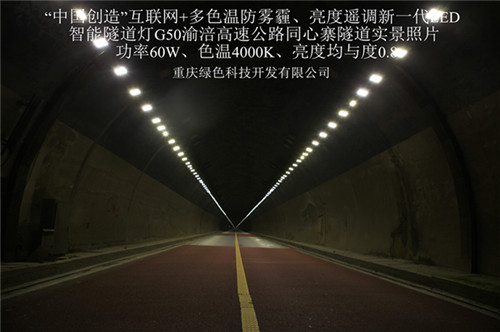

The implementation of energy-saving green lighting after the yellow grass, concentric village, Miao Bao tunnel has the following five characteristics: (a) by PM2.5 sensor, temperature sensor, ultrasonic sensor, radar remote camera automatic acquisition of environmental protection, meteorology, transportation, security and other information, analyze the information sharing and data services through the cloud platform. (two) in different climate and season, according to the change of climate and environmental sensory needs people, through the temperature sensor, humidity sensor, PM2.5 sensor, intelligent remote control to achieve a variety of lighting lamps, color temperature, improve the human sensory comfort. In spring, autumn and winter, the light color temperature is adjustable for warm white 3500K; summer, light color temperature adjustable 4000K white light; fog, haze light color temperature adjustable 3000K yellow light, anti fog, anti haze lighting, traffic safety. (three) the brightness of light can be controlled by remote intelligence. In different time periods, different light intensity and different traffic flow, the light can realize many kinds of brightness illumination modes through the intelligent control of photosensitive sensors, ultrasonic sensors and radar sensors. In different periods of light adjustment for a variety of lighting mode, including "daytime mode", "night mode", "summer mode" and "winter mode" and "anti haze mode", which greatly improve the saving rate, and can effectively solve the tunnel lighting control circuit to shut down or turn off the lights caused by lighting the dark area interval by saving, traffic safety problems. (four) the important parameters such as luminance uniformity, illuminance uniformity and energy saving rate are all better than the national standard of LED tunnel light. The new generation of LED intelligent tunnel lamp, one can be used when more than one ordinary monochromatic temperature LED tunnel lamp, higher cost performance, can improve the light efficiency of 10%, and prolong the service life of street lights more than double. Intelligent color matching and dimming, more comfortable and energy-saving. (five) the total power saving rate of the tunnel lighting is above 60%, and the annual electricity saving rate is 1 million 500 thousand degrees, which is equivalent to reducing the burning of 600 tons of standard coal, reducing the emission of 1300 tons of carbon dioxide, 45 tons of sulfur dioxide and 22 tons of nitrogen oxides.

Yellow grass, concentric village, Fort Temple tunnel using Internet plus multi color temperature and brightness. Anti fog and haze of a new generation of LED tunnel lights and remote intelligent control system for the implementation of green lighting energy saving, and is today the largest Internet plus color temperature and brightness. Anti fog and haze of a new generation of LED tunnel lamp intelligent engineering case. After the completion of the project was put into use, the news media quickly reported publicity. Chongqing news channel "live in Chongqing" broadcast "the city unique intelligent multi color temperature tunnel lights put into use" (see http://tv.cntv.cn/video/C11084/f84ffe4402b03de1d490706a0a4e5c44); the Chongqing Times published "the first! Chongqing high speed with the chameleons lights "(see http://cqsb.cqtimes.cn/html/2016-07/05/content_348355.htm); the Chongqing morning news published in the" Chongqing to install a 'smart' lamp can change with season and color "(see http://cq.qq.com/a/20160705/015534.htm); the Chongqing Evening News published in the" high speed tunnel lighting will change our city with the first of the chameleons highway "(see: http://cq.cqwb.com.cn/sh/2016-07/05/content_589046.htm); hundreds of media were reproduced on the above news. I believe the Chongqing "Chinese creation" Internet plus color temperature, brightness and anti fog haze remote intelligent remote control of a new generation of LED lighting products, will lead and promote the national highway, city street green lighting a new round of energy-saving work.

Chongqing green science and Technology Development Co Ltd
Address: 113 Li Zheng street, Yuzhong District, Chongqing: 400043
Contact: Su Chengyong Tel: 15823825195
Mailbox: lskjkf@126.com website: hbnhjx.cn
